Name: Trail Assets

Display Field: TRAIL_NAME

Type: Feature Layer

Geometry Type: esriGeometryPolyline

Description: Pedestrian and bicycle trails within the City of Tigard.

Service Item Id: 9c6a0341c7c244f9b90e6e65d91333ef

Copyright Text: City of Tigard Public Works Department

Default Visibility: false

MaxRecordCount: 2000

MaxSelectionCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 4500.0

Max Scale: 10.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 7590442.183562967
YMin: 631647.3538615787
XMax: 7635907.29067132
YMax: 671478.0524443728
Spatial Reference: 2913  (2913)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: TYPE
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value: ASPH
  Label: Asphalt
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 0, 0, 255]
  Width: 5
• Value: OTH
  Label: Other
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 0, 0, 255]
  Width: 5
• Value: EARTH
  Label: Other
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 0, 0, 255]
  Width: 5
• Value: BOARD
  Label: Other
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 0, 0, 255]
  Width: 5
• Value: BARK
  Label: Other
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 0, 0, 255]
  Width: 5
• Value: CONC
  Label: Concrete
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 0, 0, 255]
  Width: 5
Transparency: 0
Labeling Info:

Feature Draw Order:

N/A

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: false
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• UNITID ( type: esriFieldTypeString, alias: Unit Id, length: 20 )
• TYPE ( type: esriFieldTypeString, alias: Trail Type, length: 5 , Coded Values: [CONC: Concrete] , [ASPH: Asphalt] , [BARK: Barkdust] , ...3 more... )
• TRAIL_USE ( type: esriFieldTypeString, alias: Trail Use, length: 5 , Coded Values: [BICYC: Bicycle] , [PED: Pedestrian] , [MULTI: Multi-Use] , ...1 more... )
• OWNER ( type: esriFieldTypeString, alias: Owner, length: 5 , Coded Values: [PRVT: Private] , [CWS: Clean Water Services] , [WASCO: Washington County] , ...17 more... )
• SOURCE ( type: esriFieldTypeString, alias: Source, length: 5 , Coded Values: [1: Field Collection] , [2: RLIS] , [3: Study] , ...3 more... )
• TRAIL_NAME ( type: esriFieldTypeString, alias: TRAIL_NAME, length: 35 )
• TRAIL_WIDTH ( type: esriFieldTypeDouble, alias: TRAIL_WIDTH )
• YEAR_INSTALL ( type: esriFieldTypeString, alias: Year Installed, length: 4 )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• CreateUser ( type: esriFieldTypeString, alias: CreateUser, length: 255 )
• CreateDate ( type: esriFieldTypeDate, alias: CreateDate, length: 8 )
• LastEditUser ( type: esriFieldTypeString, alias: LastEditUser, length: 255 )
• LastEditDate ( type: esriFieldTypeDate, alias: LastEditDate, length: 8 )
• MS_TRAIL_TYPE ( type: esriFieldTypeString, alias: MS Trail Type, length: 30 , Coded Values: [Soft Trail: Soft Trail] , [Hard Trail: Hard Trail] )
• TRAILENDPT1 ( type: esriFieldTypeString, alias: Trail end point 1, length: 20 )
• TRAILENDPT2 ( type: esriFieldTypeString, alias: Trail end point 2, length: 50 )
• TRUNKLINE ( type: esriFieldTypeString, alias: Trunkline, length: 3 , Coded Values: [Y: Yes] , [N: No] )
• TRAIL_NAME_GROUPING ( type: esriFieldTypeString, alias: Trail Name Grouping, length: 50 )
• REPORTING_STATE ( type: esriFieldTypeSmallInteger, alias: Reporting State , Coded Values: [1: Planned] , [2: Existing] , [3: Detour] , ...2 more... )
• SHAPE ( type: esriFieldTypeGeometry, alias: SHAPE )
• SHAPE_Length ( type: esriFieldTypeDouble, alias: SHAPE_Length )
• INPARK ( type: esriFieldTypeString, alias: Trail In Park, length: 50 , Coded Values: [Within: Within] , [Partially Within: Partially Within] , [Not Within: Not Within] )
• WIDTH ( type: esriFieldTypeString, alias: Trail Width, length: 15 )
• URBN_PLN_AREA ( type: esriFieldTypeString, alias: Urban Planning Area, length: 150 )
• MAXROUGH ( type: esriFieldTypeDouble, alias: Max Roughness )
• CLASS ( type: esriFieldTypeString, alias: Trail Classification, length: 50 , Coded Values: [1: Community Trails] , [2: Neighborhood Connectors] , [3: Neighborhood Nature Trails] , ...4 more... )
• SEGNAME ( type: esriFieldTypeString, alias: Trail Segment Name, length: 150 )
• SEGRAI ( type: esriFieldTypeDouble, alias: Segment RAI )
• PAVEINDEX ( type: esriFieldTypeDouble, alias: Pavement Index )
• PAVESCORE ( type: esriFieldTypeInteger, alias: Pavement Score )
• MATERIAL ( type: esriFieldTypeString, alias: Trail Material, length: 50 , Coded Values: [Asphalt: Asphalt] , [Boardwalk: Boardwalk] , [Concrete: Concrete] , ...2 more... )
• RUNLENGTH ( type: esriFieldTypeDouble, alias: Run Length )
• OBSTRUCTION ( type: esriFieldTypeString, alias: Obstruction Type, length: 255 )
• SHADE ( type: esriFieldTypeString, alias: Shade Cover, length: 255 )
• MAXLVLCHGE ( type: esriFieldTypeDouble, alias: Max Level Change )
• RAISCORE ( type: esriFieldTypeInteger, alias: RAI Score )
• DISTANCE_TRANSIT ( type: esriFieldTypeString, alias: Distance To Transit, length: 150 )
• MAINTAINER ( type: esriFieldTypeString, alias: Trail Maintainer, length: 50 , Coded Values: [PRVT: Private] , [CWS: Clean Water Services] , [WASCO: Washington County] , ...17 more... )
• RUNNAME ( type: esriFieldTypeString, alias: Run Name, length: 255 )
• Old_Layer ( type: esriFieldTypeString, alias: Old_Layer, length: 20 )
• CROSSSLOPEPCNT ( type: esriFieldTypeDouble, alias: Cross Slope Percent )
• SYSNAME ( type: esriFieldTypeString, alias: Trail System Name, length: 150 )
• UNITID_OLD ( type: esriFieldTypeString, alias: Unit Id, length: 50 )
• RUNSLOPEPCNT ( type: esriFieldTypeDouble, alias: Running Slope Percent )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

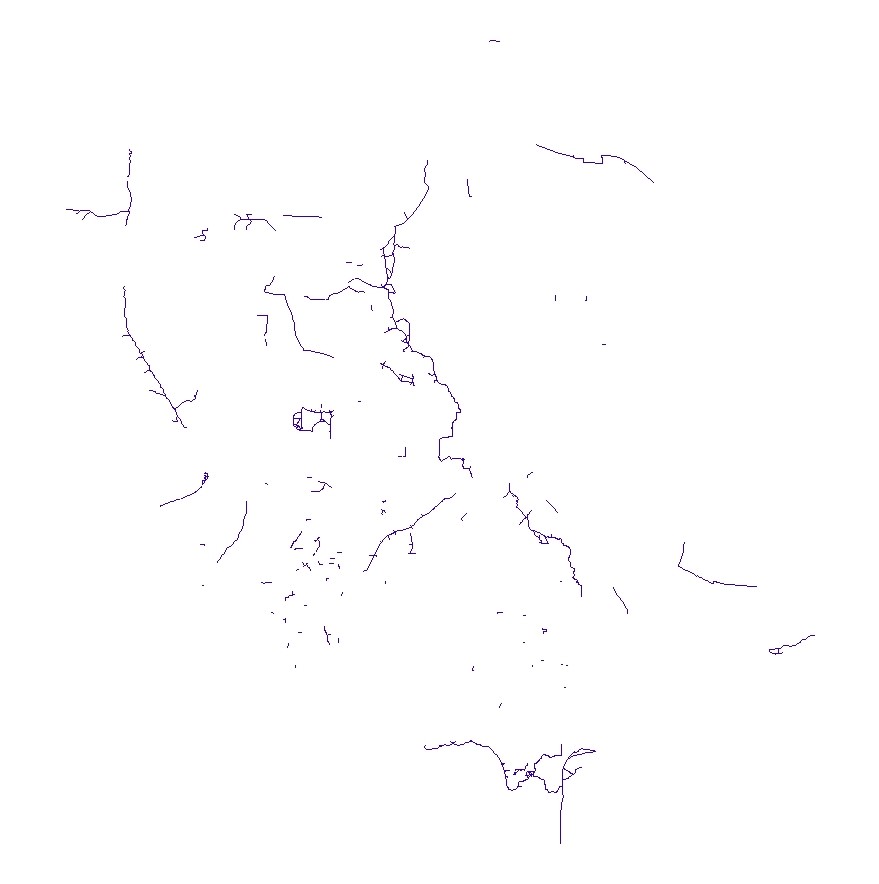

  Iteminfo   Thumbnail   Metadata
